Descrição

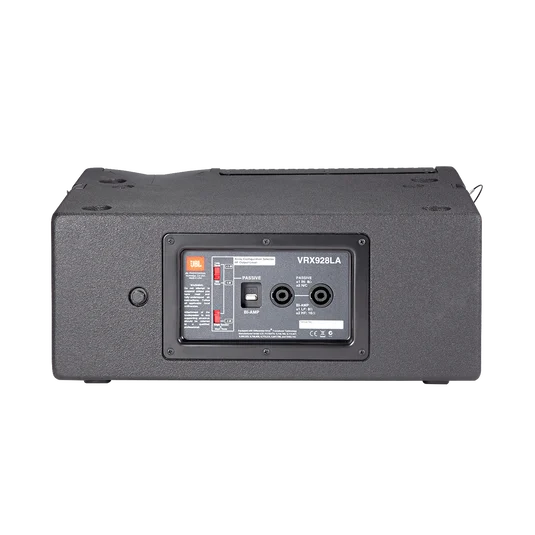

The VRX928LA – the smaller version of the VRX932LA is a light-weight, compact, 8", two-way line-array speaker system designed for use in arrays of up to six units. VRX928LA is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays. The VRX928LA offers all the same features as the VRX932LA. As with the VRX932LA, the Array Configuration Selector (ACS) makes it possible to distribute the sound more evenly over the entire audience area, by reducing the output near the stage and increasing it for the far to reach rear areas.
Especificações
| Especificações Gerais | |
|---|---|
| Padrão de Cobertura Acústica (Nominal) | 100° x 15° |
| Frequency Range Hz (-10 dB) | 70 - 20,000 |
| Resposta de Frequência Hz (±3 dB) | 87 - 19,000 |
| SPL Máximo (Pico dB) | 122 |
| Nominal Impedance (ohms) | 8 |
| Potência de Saída (W RMS) | 400 |
| Power Rating (W, Peak) | 1600 |
| Sensitivity (dB SPL 1w/1m) | 90 |
| Dimensões | |
| Profundidade (polegadas) | 10.5 |
| Profundidade (mm) | 267 |
| Altura (polegadas) | 9.1 |
| Altura (mm) | 230 |
| Peso (kg) | 12.7 |
| Peso (lbs) | 28 |
| Largura (polegadas) | 16.5 |
| Largura (mm) | 419 |
Características
JBL’s exclusive neodymium magnet Differential Drive® wooferFor high-power capacity and light weight
Integral rigging hardwareFor simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
Array Configuration SelectorPermits “array shading” in passive mode
Constant Curvature waveguideFor unprecedented array coherence
Dual angle pole socket for aiming flexibilityOne or two speakers may be mounted to a 35 mm pole or tripod stand
Durable constructionVRX900 Series enclosures are constructed with premium quality birch plywood. Coated in JBL's rugged DuraFlex™ finish and heavily braced the systems are extremely durable, not to mention rigid and resonance free. The heavy duty steel grilles are internally lined with acoustically transparent foam to provide additional driver protection.
